5MP 4 in 1 AHD CVI TVI CVBS Mini PTZ camera outdoor cctv security dome pan tilt 4x zoom auto focus cam video surveillance

5MP 4 in 1 AHD CVI TVI CVBS Mini PTZ camera outdoor cctv security dome pan tilt 4x zoom auto focus cam video surveillance
  • Продавецrapturewatch.us
  • Список ценUS $135.99piece
  • Продажная ценаUS $135.99piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,6 (745)

Oписание продукта



4" High Speed Dome PTZ Camera AHD 1080P

405-AHD_01

Product Description:
  • AHD CVI TVI CVBS 4-in-1 Signal.
  • Support Coaxial PTZ Control for ONLY AHD signal with AHD DVR. RS485 is no more required. Support PTZ control by both Coax and RS485. You could use either of them
  • Super good night vision.
  • 4pcs High quality array LEDs, 2pcs laser LEDs, auto-switch to long/middle/close distance focus(Light up different numbers of LEDs), 100M IR distance.
  • High performance constant-current design, leds light time up to 50,000 hours.
  • Infrared light and magnification range matching algorithm based on infrared light adjustment, the brightness ratio, distance and angle for
  • the image to achieve the desired state of image.
  • 3 modes(Auto/On/Off) status for LEDs setting for different requirements in different environment.
  • All-metal die-cast aluminum design for any weather, weatherproof, durable to use in different kind or weather/climate, IP66 grade waterproof.
  • High precision motor, precise control, smooth motion, stable rotation.
  • 4" MINI SIZE AHD 1080P High Speed Dome PTZ Camera 30X ZOOM.

405-AHD_02
Parameters:

Model:                                                           HDR-405G-120-4IN1
Camera
Image Sensor:                                             1/3" CMOS
Resolution:                                                   2.0MP 1280(H)x 1080(V)
Video Format:                                              PAL/NTSC
Minimum Illumination:                               Color: 0.1Lux   B/W: 0.01Lux
Video Out:                                                    AHDH(1Vp-p 75ohm)
S/N Ratio:                                                     ≥50DB
White Balance:                                           Auto
Day&Night mode:                                       Built-in IR-CUT  Auto/Day/Night optional
Lens
Focus Length:                                           4.7 to 84.6mm(F1.6 to F2.7)
ZOOM:                                                          30X ZOOM
Function
IR control:                                                    Variable with focus length
IR Distance:                                                100M
Rotate Range Horizontal:                        0°~360° Vertical:-15°~90°
Rotate Speed Horizontal:                        0.1°~100°/s; Vertical 0.1°~100°/s
Preset:                                                         255
Patrol Track:                                               4 path, each path can add 10 presets
Automatic scan:                                         1 path
 360°track:                                                  1 path
Watch:                                                          Preset / Patrol Track / zone track / horizontal track
Video:                                                           In/Out
Video Out:                                                   1.0Vpp/75Ω,NTSC/PAL,BNC Port
Pan/Tilt Control 2 method control:          a)Control over coax:Power & Video cable plug-and-play, no need to set up address code or DVR PTZ control. Easy and                                                                              quick b)PTZ Control via RS485
Other
Power:                                                           DC12V
Consumption:                                              20W MAX
Working Environment:                               Temprture-40~60 degrees; Humidity<90%
Protection grade:                                       IP66 waterproof, 4000V Lightning protection, against-surge
Material:                                                       Metal casting aluminum
405-AHD_034in1-_07405-IP_07

Package Include:
  • 1 x 4IN1 1080P PTZ Camera
  • 1 x Power Supply
  • 1 x Manual


01 trouble shooting

All items are under strict test before shipping. If there\'s any doubt during using an item please contact us through aliexpress with order NO. Our professional customer service and tech support will do our best to help.
02 shipping handing
Orders will be shipped within 3 business days on declared payment.
Free shipping by expedited courier to most of the countries all over the world.
Tax/import duty not included,buyers are responsible for the fee if there\'s any.

03 warranty return

We offer free replacement within 30 days from delivery date.  For orders within 12 months, we charge a small amount for replacement. For orders over 12 months, we offer free tech support&discount for new item.

04 feedback

We strive for 100% customer satisfaction on every sale we complete.Your positive feedback with 5 stars rating will be highly appreciated. If you\'re not satisfied by any means, please contact and give us an opportunity to offer you a proper solution.

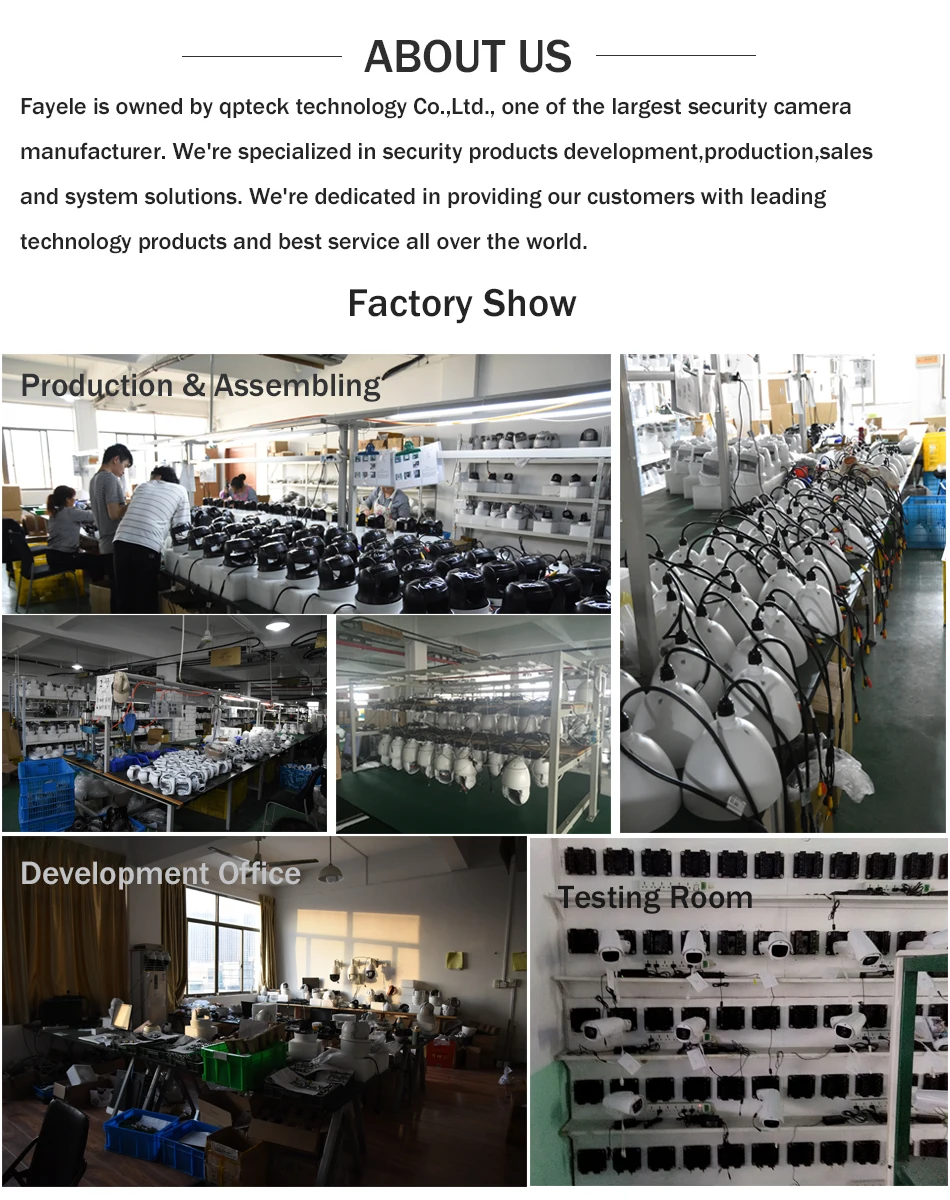

factory show
