IP66 Outdoor Security FULL HD 1080P Analog AHD TVI CVI 4IN1 High Speed PTZ Camera Surveillance 2.0MP 36X ZOOM Auto Focus IR CUT

IP66 Outdoor Security FULL HD 1080P Analog AHD TVI CVI 4IN1 High Speed PTZ Camera Surveillance 2.0MP 36X ZOOM Auto Focus IR CUT
  • Продавецrapturewatch.us
  • Список ценUS $149.27piece
  • Продажная ценаUS $149.27piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,1 (741)

Oписание продукта

4" High Speed Dome PTZ Camera AHD 1080P

406-AHD-_08

Product Description:

  • Support Coaxial and RS485 PTZ Control.  Coaxial PTZ control requires AHD 1080P DVR which also support coaixl PTZ control function.

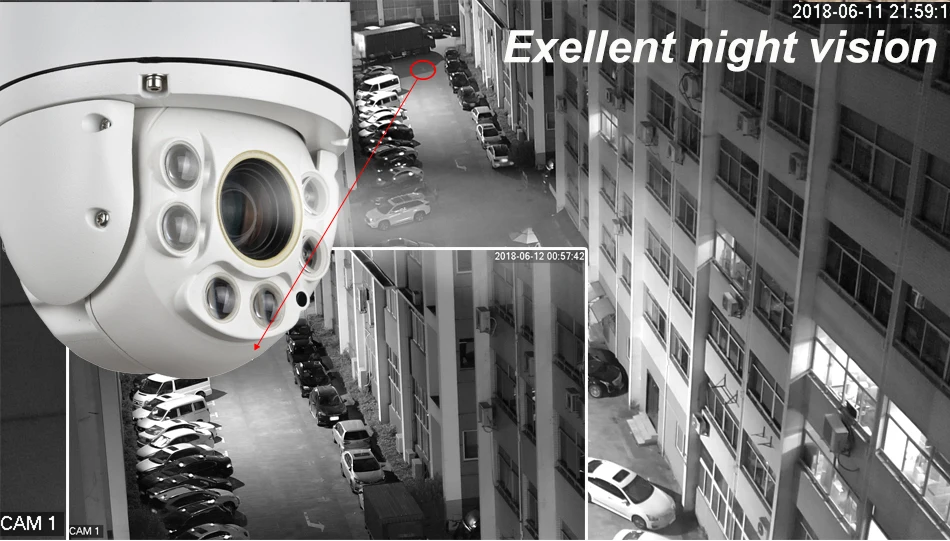

  • Super good night vision.
  • 6pcs High quality array LEDs, auto-switch to long/middle/close distance focus(Light up different numbers of LEDs), 100M IR distance.
  • High performance constant-current design, leds light time up to 50,000 hours.
  • Infrared light and magnification range matching algorithm based on infrared light adjustment, the brightness ratio, distance and angle for
  • the image to achieve the desired state of image.
  • 3 modes(Auto/On/Off) status for LEDs setting for different requirements in different environment.
  • All-metal die-cast aluminum design for any weather, weatherproof, durable to use in different kind or weather/climate, IP66 grade waterproof.
  • High precision motor, precise control, smooth motion, stable rotation.
  • 4" MINI SIZE AHD 1080P High Speed Dome PTZ Camera 36X ZOOM.
  • Please note: 1080P is 4in1(AHD CVI TVI CVBS)signal


4in1-wd406-AHD-_02406-AHD-_03

Parameters:

Model:                                                           HDR-406-MX
Camera
Image Sensor:                                             1/3" CMOS
Resolution:                                                   2.0MP 1280(H)x 1080(V)
Video Format:                                              PAL/NTSC
Minimum Illumination:                               Color: 0.1Lux   B/W: 0.01Lux
Video Out:                                                    AHDH(1Vp-p 75ohm)
S/N Ratio:                                                     ≥50DB
White Balance:                                           Auto
Day&Night mode:                                       Built-in IR-CUT  Auto/Day/Night optional
Lens
Focus Length:                                           4.7 to 94mm(F1.6 to F2.7)
ZOOM:                                                          36X ZOOM
Function
IR control:                                                    Variable with focus length
IR Distance:                                                100M
Rotate Range Horizontal:                        0°~360° Vertical:-15°~90°
Rotate Speed Horizontal:                        0.1°~240°/s; Vertical 0.1°~180°/s
Preset:                                                         255
Patrol Track:                                               4 path, each path can add 10 presets
Automatic scan:                                         1 path
 360°track:                                                  1 path
Watch:                                                          Preset / Patrol Track / zone track / horizontal track
Video:                                                           In/Out
Video Out:                                                   1.0Vpp/75Ω,NTSC/PAL,BNC Port
Pan/Tilt Control 2 method control:          a)Control over coax:Power & Video cable plug-and-play, no need to set up address code or DVR PTZ control. Easy and                                                                              quick b)PTZ Control via RS485
Other
Power:                                                           DC12V
Consumption:                                              20W
Working Environment:                               Temprture-40~60 degrees; Humidity<90%
Protection grade:                                       IP66 waterproof, 4000V Lightning protection, against-surge
Material:                                                       Full Metal casting aluminum406-AHD-_05
406-AHD-_06

Package Include:
  • 1 x AHD 1080P High Speed PTZ Camera
  • 1 x Power Supply
  • 1 x Screw bag
