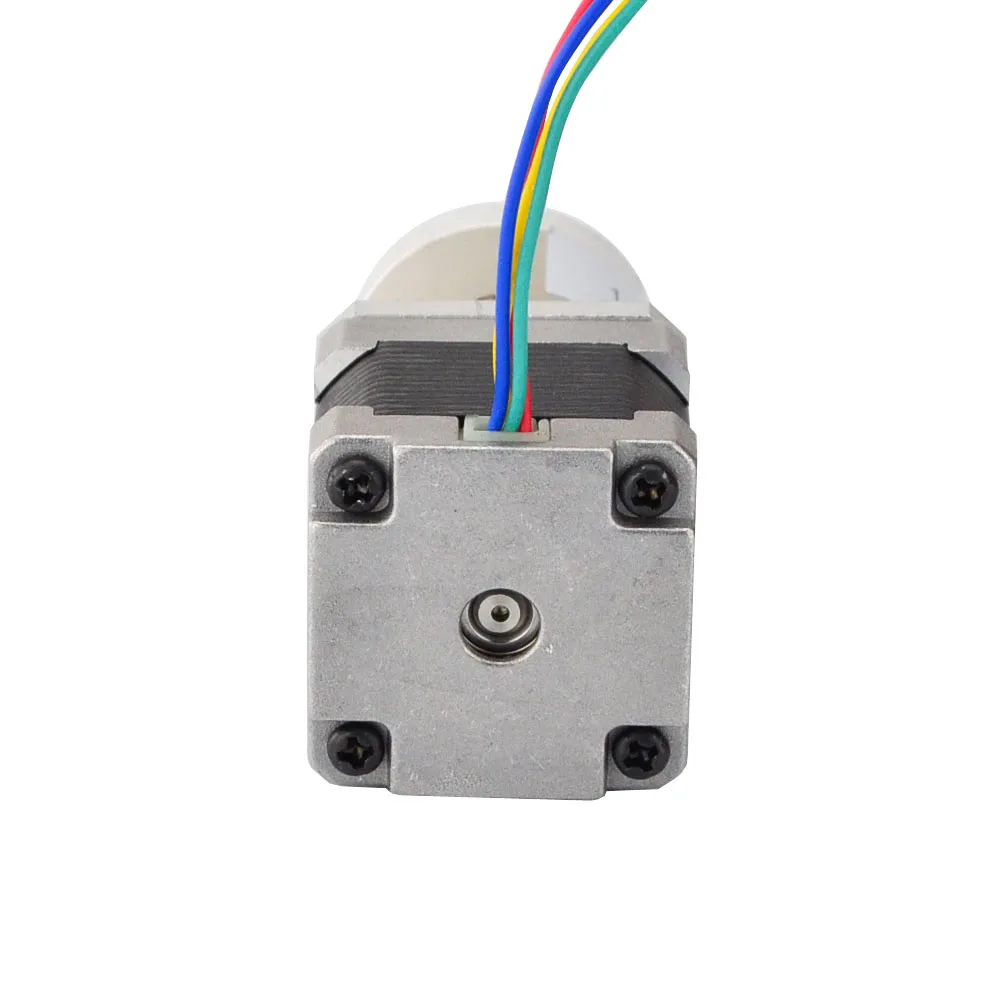

Nema 14 Stepper Motor 27:1 Planetary Gearbox Nema14 Geared Step Motor L=33mm 0.8A for 3D Printer/CNC Robotic

Nema 14 Stepper Motor 27:1 Planetary Gearbox Nema14 Geared Step Motor L=33mm 0.8A for 3D Printer/CNC Robotic
  • Продавецrapturewatch.us
  • Список ценUS $32.83piece
  • Продажная ценаUS $32.83piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,1 (941)

Oписание продукта


This Nema 14 stepper motor with 33mm body and 0.8A rated current, integrated a planetary gearbox of 26.85:1 gear ratio. It\'s a good solution to applications that with limited space but need low speed and/or high torque.


Electrical Specification

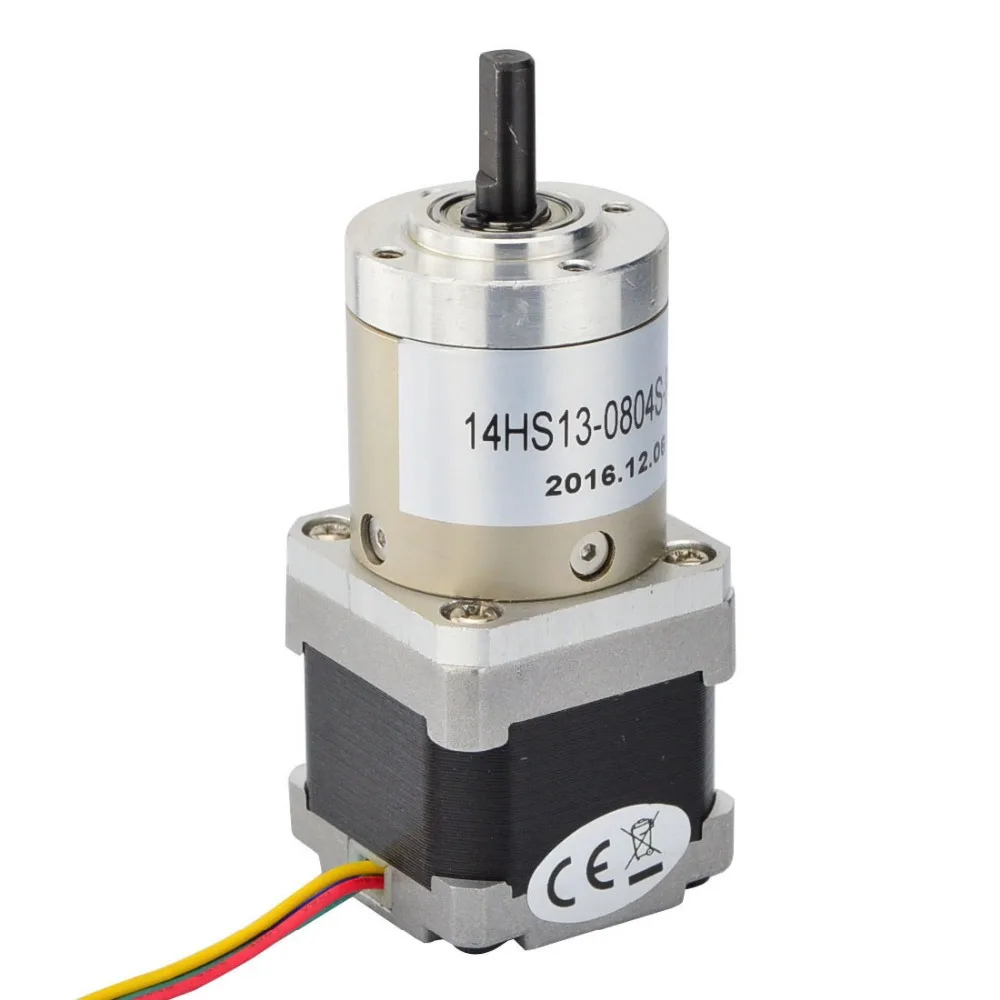

  • Manufacturer Part Number: 14HS13-0804S-PG27
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.067 deg
  • Holding Torque without Gearbox: 18Ncm(25.49oz.in)
  • Rated Current/phase: 1.0A
  • Phase Resistance: 6.8ohms
  • Voltage: 5.4V
  • Inductance: 10mH ± 20%(1KHz)


Gearbox Specifications


  • Gearbox Type: Planetary
  • Gear Ratio: 26.85: 1
  • Gear Efficiency: 81%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 3Nm(425oz.in)
  • Moment Permissible Torque: 5Nm(708oz.in)
  • Shaft Maximum Axial Load: 50N
  • Shaft Maximum Radial Load: 100N


Physical Specifications


  • Frame Size: 35 x 35mm
  • Motor Length: 34mm
  • Gearbox Length: 35.8mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 18mm
  • D-cut Length: 12mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 400g


Connection

4wire2

14HS13-0804S-PG27 114HS13-0804S-PG27 8
