high resolution ultra Low light 0.0001 day and night color ccd camera 1080P underwater TVI Camera

high resolution ultra Low light 0.0001 day and night color ccd camera 1080P underwater TVI Camera
  • Продавецrapturewatch.us
  • Список ценUS $68.90piece
  • Продажная ценаUS $68.90piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,5 (769)

Oписание продукта


Security High Speed Dome HD 4IN1 1080P PTZ Camera
4in1-_01


Product Description
  • Support PTZ control over coaxial(Only with AHD DVR AHD signal) and RS485 PTZ Control
  • Super good night vision.
  • IR LEDs: 8pcs array LEDs for 3 sets IR control, quick capturing the target even in total dark. Up to 100m IR distance.
  • High performance constant-current design, leds light time up to 50,000 hours.
  • Infrared light and magnification range matching algorithm based on infrared light adjustment, the brightness ratio, distance and angle for
  • the image to achieve the desired state of image.
  • 3 modes(Auto/On/Off) status for LEDs setting for different requirements in different environment.

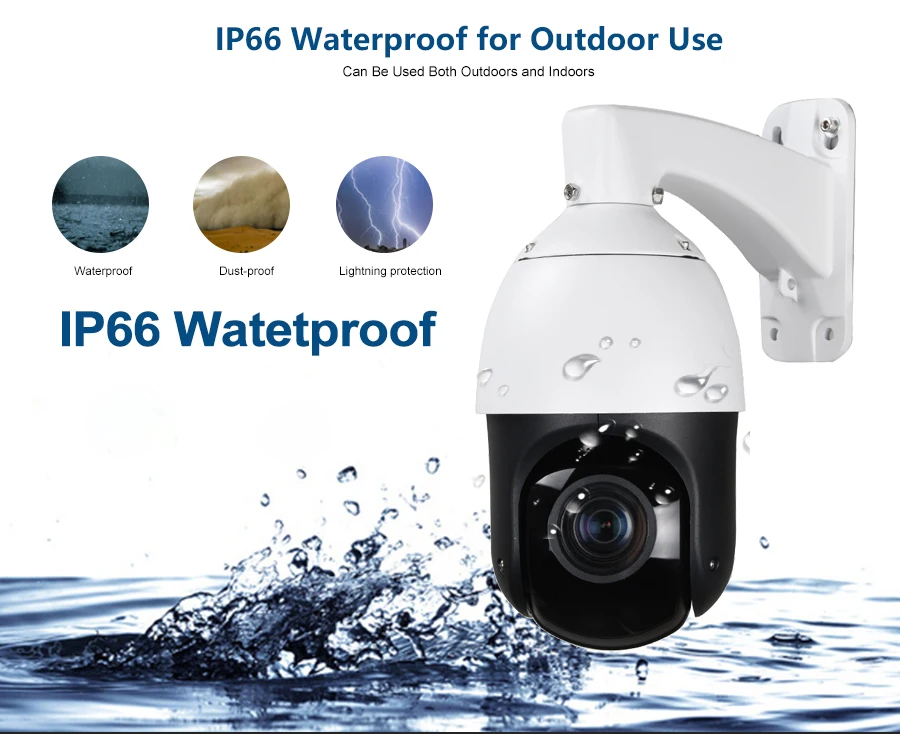

  • All-metal die-cast aluminum design for any weather, weatherproof, durable to use in different kind or weather/climate, IP66 grade waterproof.
  • High precision motor, precise control, smooth motion, stable rotation.

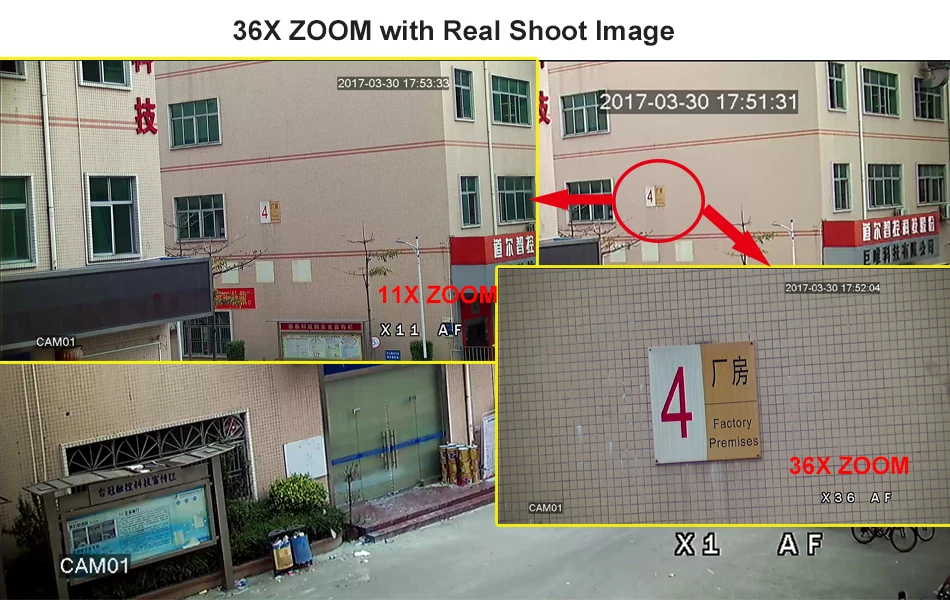

  • HD 1080P 2.0MP High Speed Dome PTZ Camera 36X ZOOM.
  • AHD CVI TVI Analog 4in1 signal.  default signal is AHD or analog.

405_04

4in1-_05
4in1-_07
AHD 36X

Parameters

Model

HDR-405G-120MX

Camera

Image Sensor

1/2.8" CMOS

Resolution

2.0MP 1920(H) x 1080(V)

Video Format

PAL/NTSC

Minimum Illumination

Color: 0.1Lux   B/W: 0.01Lux

Video Out

AHDH(1Vp-p 75ohm)

S/N Ratio

≥50DB

White Balance

Auto

Day&Night mode

Built-in IR-CUT  Auto/Day/Night optional

Lens

Focus Length

 4.7 to 84.6mm(F1.6 to F2.7)

ZOOM

36X ZOOM

Function

IR control

Variable with focus length

IR Distance

200M

Rotate Range

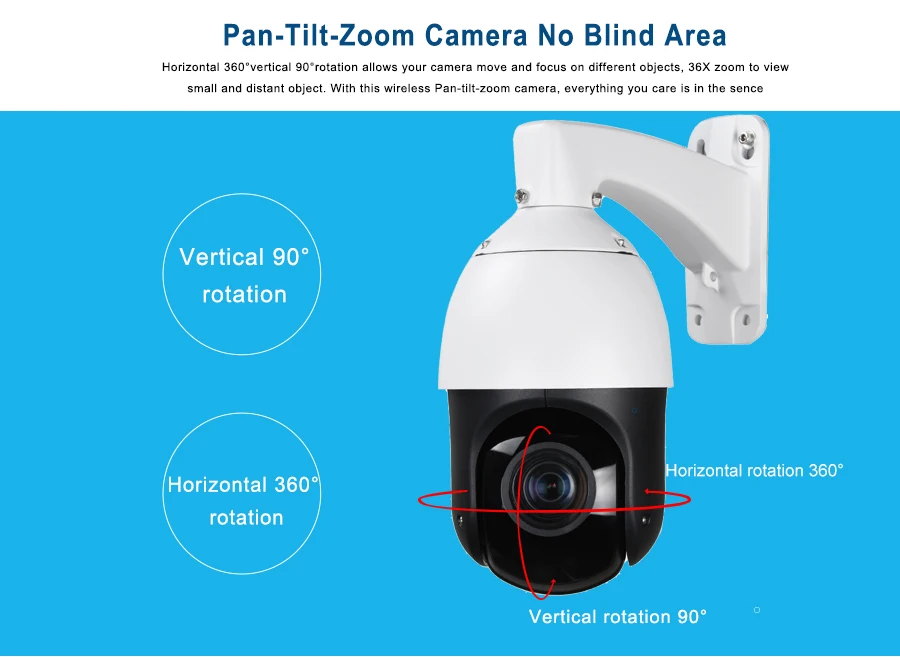

Horizontal: 0°~360° Vertical: -15°~90°

Rotate Speed

Horizontal 0.1°~100°/s; Vertical 0.1°~100°/s   HIGH Speed Dome

Preset

156

Patrol Track

4 path, each path can add 10 presets

Automatic scan

1 path

 360°track

1 path

Watch

Preset / Patrol Track / zone track / horizontal track

Video In/Out

Video Out

1.0Vpp/75Ω,NTSC/PAL,BNC Port

Pan/Tilt Control

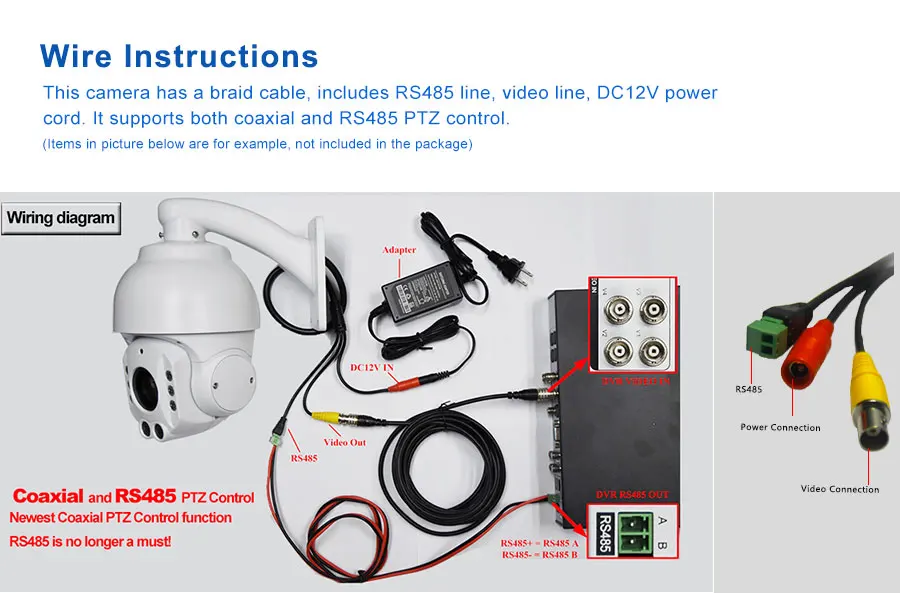

Two methods of PTZ control: 1)Control over coax only with AHD DVR for AHD signal

2) PTZ Control via RS485

Other

Power

DC12V2A

Consumption

20-30W

Working Environment

Temprture-40~60 degrees; Humidity<90%

Protection grade

IP66 waterproof, 4000V Lightning protection, against-surge

Material

Metal casting aluminum

Size

Φ150.0 (mm)×243.0(mm)

Packing Size

285*250*195mm

Weight

2.3kg

Bracket

Wall mount

aeProduct.getSubject()

Package Contents

  • 1 x 4in1 1080P High Speed Dome PTZ Camera
  • 1 x Wall Mount Bracket (If you need ceiling mount bracket please leave a message)
  • 1 x Power Supply
  • 1 x Screw Kit
  • 1 x User Manual

4in1-_08
