Satxtrem Black V8 Finder Full HD 1080P Digital Satellite Network TV Receiver DVB S/S2 MPEG 4 Multilingual Sat Meter Receptor

Satxtrem Black V8 Finder Full HD 1080P Digital Satellite Network TV Receiver DVB S/S2 MPEG 4 Multilingual Sat Meter Receptor
  • Продавецrapturewatch.us
  • Список ценUS $53.99piece
  • Продажная ценаUS $53.99piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,6 (945)

Oписание продукта

03 related product



01 description

aeProduct.getSubject()

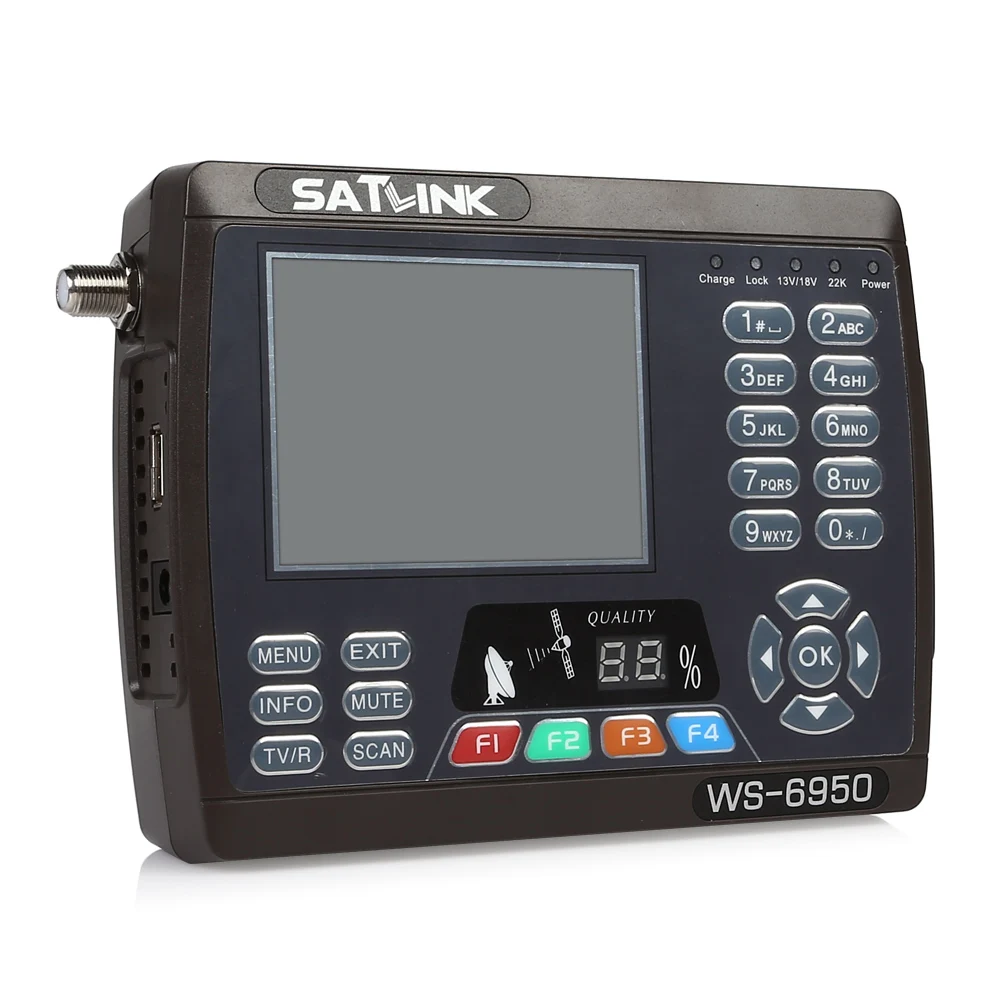

SATLink WS-6950 DVB-S FTA Combo Signal Finder Meter LCD Data Satellite

*** 3000mAh Battery ***

11 Menu Languages: English, Australian, French, Portuguese, Spanish, Italian, Dutch,Russian, Polish, Greek, Slovak


Description:


      For the first time in a economical digital meter, you are now able to view theactual channel on the screen of the meter. Now you can quickly and accuratelyalign the satellite and you can instantly check the stability of thechannel right on the screen of the meter. Transponders, Frequency, Symbol Rate,Polarity, and other settings can be modified by the user. There is never a needto send your meter in for a upgrade.
      Meter never needs to be returned for re-calibration due to the uniquecalibration system built in to the meter. Each time the meter boots up itautomatically calibrates for optimum performance so you can align each installwith confidence.


Features:


  • 8.4V/3000mAH Lion battery
  • Power adapter input: AC 90V-240V/50H
  • Power adapter output: DC 12V/1.5
  • Working time: 4-6 hours (full charge
  • Charging time: 5 hours from fla
  • Car charger supplie
  • Dimension: 155 x 95 x 45m
  • Net weight: 6kg


Functions:


1. High quality and stable performance: it\'s with a microprocessorcontroller.

2. 3.5" LCD color display, bigger menu window.

3. Channel picture, signal strength and signal quality can be showed on LCDScreen after you set up your local DVB-S Parameter.

4. It\'s with auto-protection for LNB short-circuit.

5. It shows Azimuth and Elevation, CBER/VBER, S/N, signal strength andsignal lock sound alarm.

6. It can at most show five channels\' signal at the same menu which isvery helpful for adjustment.

7. Supports both AV IN and AV OUT for camera, LCD, etc.

8. Built-in large capacity 3000mAH Li-ion battery.

9. Matched with a high quality protective case.

10. Support language: English, German, French, Portuguese, Spanish,Italian, Czech, Greek.

11. English user manual is included in the CD disk.





TRANSMISSION STANDARDS:
DVB-S


SATELLITE DEMODULATION:
Antenna Connector: F Type
Frequency Range:950 to 2150 MHz
Input Signal Level: - 65 to -25 dBm
LNB Switch Control: 22KHz
LNB Supply: 13V/18V, IMax 400mA
Demodulation: QPSK,8PSK
Symbol Rate: 2


LCD FEATURES:
LCD Type:TFT TRANSMISSIVE
Resolution:320(RGB) x240
Active Area (W x H):70.08x52.56 mm2


AV-OUTPUT:
Connector Type: 3.5 mm Jack
Video-Output: CVBS,
Audio-Output:Stereo Audio L/R Ausgang


AV-INPUT:
Connector Type :3.5 mm jack
Video-Input: CVBS,
Audio-Input: Stereo Audio L/R Eingang


AUDIO/VIDEO PROCESSING:
Data Rate :PAL-25 frame720*576,NTSC-30 frame720*480,
Signal Compatibility:Support conversion for different video formats
Video Format:4:3,16:9,By Pan & Scan and Letter Box conversion
Audio Output Mode: Stereo, Mono, R/L


DATA SERVICE PORT:
Connection: USB
Data Protocol: USB2.0 Interface
File Management System: NTFS,FAT32,FAT16
File Format: wma,mp3,mp4,avi,jpg,jpeg,bmp,img


MICROPROCESSOR:
Microprocessor; CT216S-T
32bit Processor: 133MHz
SDRAM: 4X 16Mbit


Stromversorgung:
Li-ion Battery: 8.4V/3000mAh
Adapter OUTPUT: DC12V/1.5A, INTUPT :100-240VAC 50/60Hz
Data Rate: Max. 15W


PHYSICAL CHARACERSTICS:
Dimensions (W x D x H): 9.5x15.5x4.5(cm3)
Weight: 0.5 kg




Package:


1x Satlink WS 6950 3.5" Digital Satellite Signal Finder
1x USB cable
1x AV cable
1x Car charger
1x Wall charger(EU plug+US converter)
1x Strap
1x Manual
