Onvif HD H.264/265 5MP 4MP 2MP 60m IR nightvision Mini CCTV security IP PTZ camera speed dome 30X zoom network ptz ip camera

Onvif HD H.264/265 5MP 4MP 2MP 60m IR nightvision Mini CCTV security IP PTZ camera speed dome 30X zoom network ptz ip camera
  • Продавецrapturewatch.us
  • Список ценUS $122.50piece
  • Продажная ценаUS $122.50piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,3 (876)

Oписание продукта

IP-4mp-405-1_01
Product Description

HD IP Smart PTZ Dome Camera(Smart PTZ for short) is a new tech Intelligent PTZ camera, built-in online remote view & control function, Video Server function and combined normal PTZ camera’s function. It is easy to install and operate, no need complicated wiring work.

Smart PTZ not only has all normal functions of analog PTZ camera, but also based on Ethernet control, you can set the parameters and enable specific functions through Internet Explorer Browser.
  • 4pcs High quality array LEDs, 2pcs laser leds, auto-switch to long/middle/close distance focus, 100M IR distance.
  • High performance encoding scheme, with 4.0MP progressive scan CMOS image sensor to  capture clear and dynamic picture.
  • Support auto-balance, auto-focus, auto-explosure, automatic noise reduction, automatic contrast enhancement.
  • Full capacity for ONVIF protocol and GB/T28181.
  • Precision motor drive, sensitive response, smooth operation, accuracy error is less than 0.1 degrees, image no jitter at any speed.
  • Using a high-performance platform, stable and reliable performance, support dual stream support H.264 video compression algorithms, support multiple levels of video quality configuration.
  • Built-in against-surge and lightning protection device, effectively preventing damage from 4000V instantaneous current.
  • HD IP 4.OMP PTZ camera
  • 20X Optical zoom.
  • PoE function
  • With audio Microphone and DC out port
  • ​NO P2P function, you could use NVR\'s P2P function if needed.

Specification

405-AHD_024in1-_07

Parameters

Model

NDR-405G-S420C+POE+MIC

Camera Specification

Image Sensor

(Hi3516D+1/2.8" CMOS)


Minimum Illumination

Color: 0.05Lux, B/W: 0.01Lux, 0Lux with IR

3D DNR

Support

WDR

1/7.5s--1/2000s,AUTO

Electronic Shutter

Support

Day&Night mode

Auto ICR Color to Black

Focus Length

5.4-108mm, 20X Optical Zoom

Maximum Image

 2592x1520/4MP 30fps/NTSC ;25fps/PAL

Main Stream

25fps: (2592x1520) (1920x1080)(1280×960), (1280×720), (800×600)

Sub Stream

25fps: (704×576), (640×480), (648×360)

Video Compression

H.265, H.264, H.264_BASELINE H.264_Main profile

Network Protocol

HTTP ,FTP,SMTP,UPnP,SNMP,DDNS,NTP,RTSP,RTP,TCP

DHCP,PPPoE

Ethernet

ONVIF 2.4, GB/T.28181

Pan/Tilt

IR Distance

100M

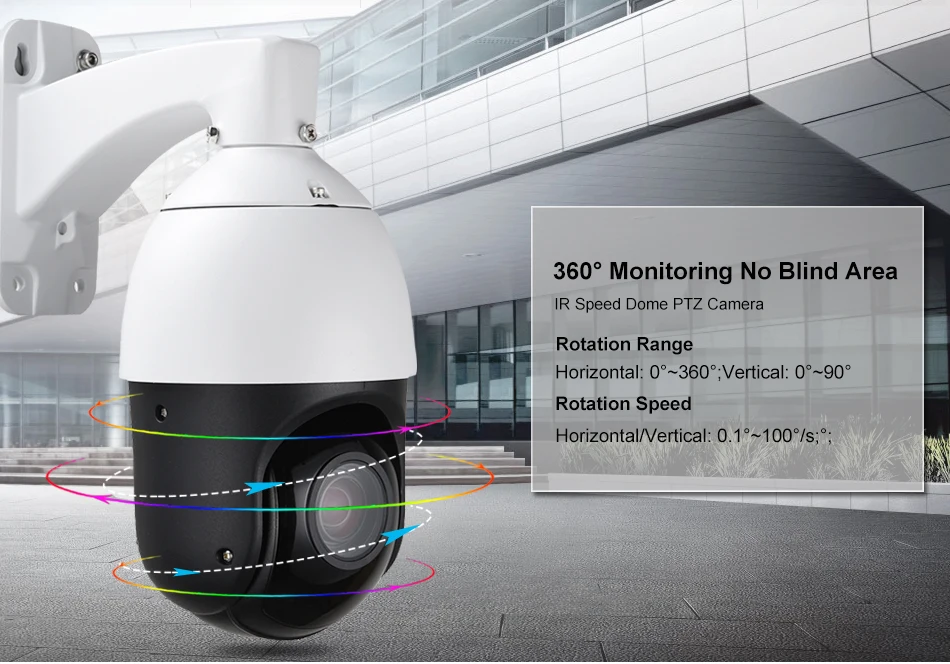

Horizontal Range

0°~360°Continuously

Vertical Range

0°~90°(Auto Flip)

Horizontal Speed

0.05°~100°/s

Vertical Speed

0.05°~100°/s

Max Speed

100°/S(Preset Speed)

Preset

155

Patrol Track

4 path, each path can add 10 presets

Left-right scan

1 path

Horizontal scan

1 path

Electric action

Watch position/left-right scan/horizontal 360°scan/patrol scan

Free action

Watch position/left-right scan/horizontal 360°scan/patrol scan

Watch position

1

Other

Power

Standard DC 12V

Consumption

<25W

Working Environment

Tempreture-20~60 degrees; Humidity<90%

Protection grade

IP66, 4000V Lightning protection, against-surge

Weight

2.5kg

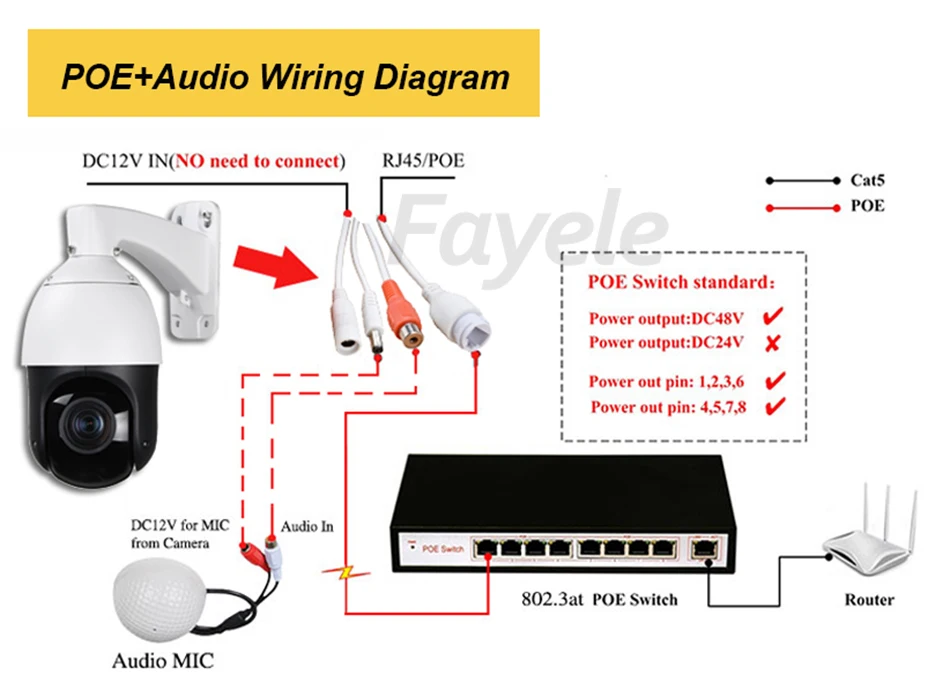

405 POE Diagram

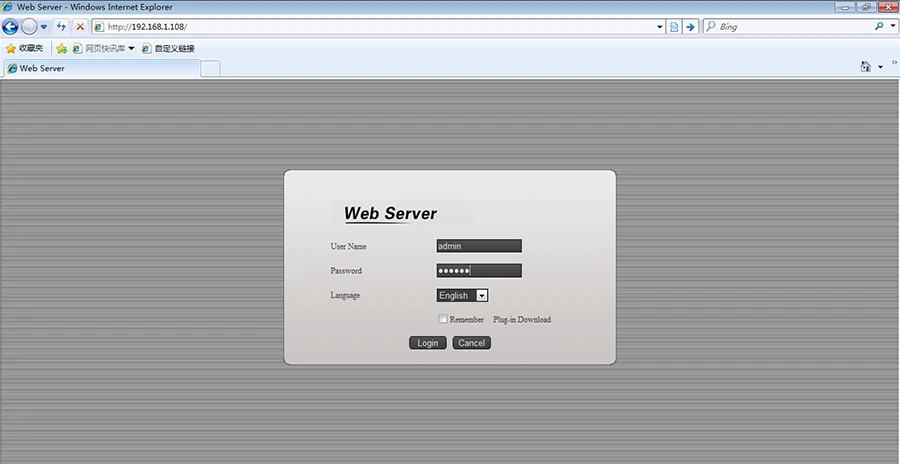

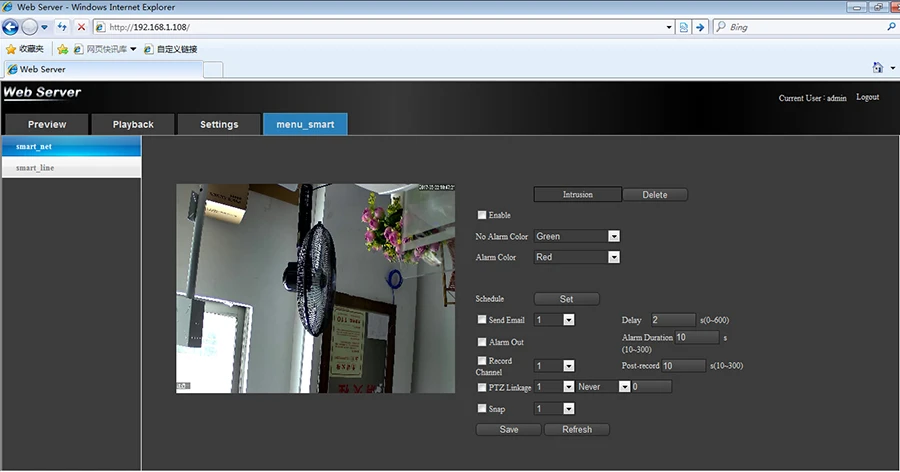

IE WEB VIEW

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

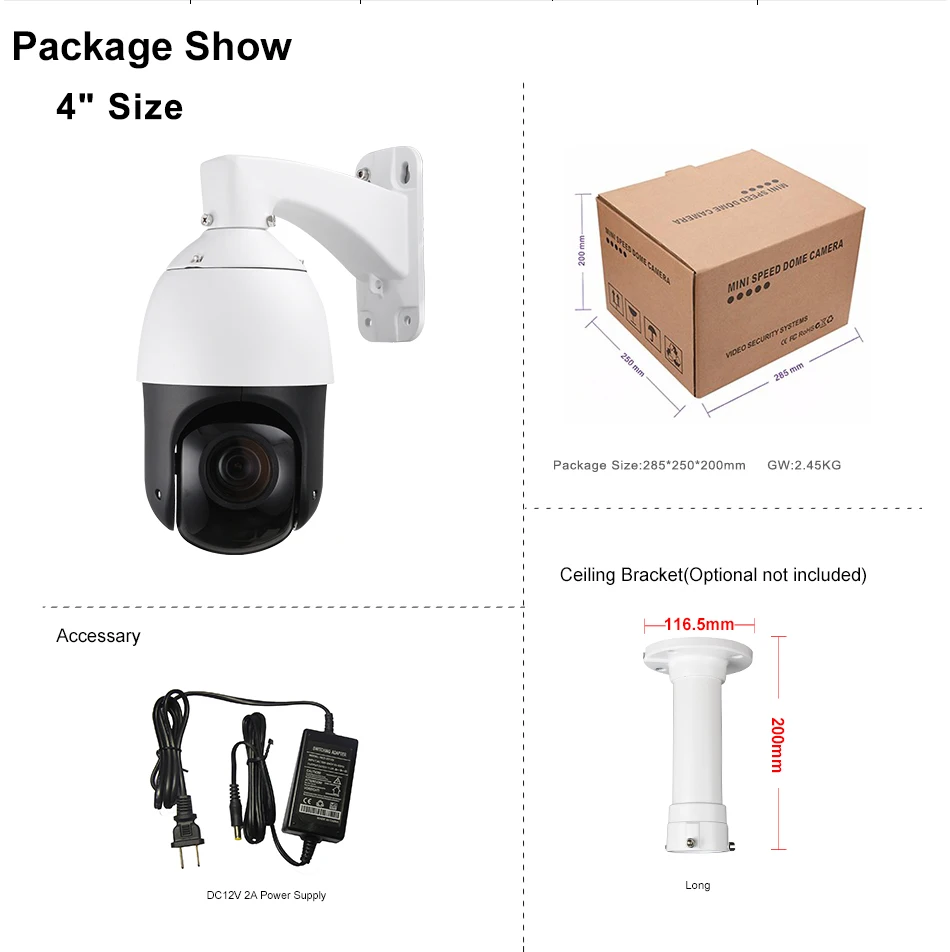

Package Contents

  • 1 x POE 4.0MP MINI Size PTZ Camera
  • 1 x Wall Mount Bracket
  • 1 x Power Supply
  • 1 x Screw Kit
  • 1 x User Manual
  • 1 x Microphone
