Metal Access Control keypad Waterproof IC Mifare Card Reader include 3pcs RFID Keyfobs Home Automation Security Reader 13.65MHZ

Metal Access Control keypad Waterproof IC Mifare Card Reader include 3pcs RFID Keyfobs Home Automation Security Reader 13.65MHZ
  • Продавецrapturewatch.us
  • Список ценUS $68.50piece
  • Продажная ценаUS $68.50piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,3 (759)

Oписание продукта

Package:

 1pcs access control

 1pcs magnetic lock

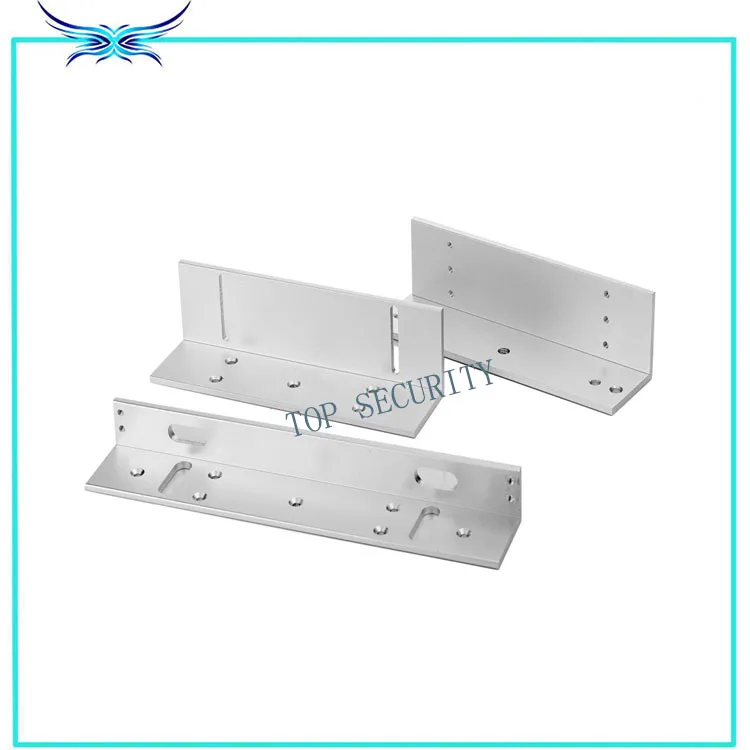

 1pcs ZL bracket

 1pcs power supply

 1pcs exit button

 1pcs wried door bell

 1pcs remote control





Description:

 TF1700, one of the worlds smallest IP-based fingerprint terminals used for access control and time attendance features. With its IP65 rated rugged structure, TF1700 offers extra durability in all weather conditions including outdoor environments. It is specially designed for standalone applications such as house, office, shop, garage, factory and others.

Functions:
Rugged structure for outdoor installation and extra durability
* IP65 rated waterproof and weatherproof structure Slim and elegant design
* One of the world\\\'s smallest fingerprint terminals
* Sleek and slim design for narrow spaces

Fast and accurate fingerprint algorithm
* 1:3000 fingerprint identification in 1 second
* Stores 3,000 fingerprint templates, 3,000 cards and 100,000 transactions

Easy installation and connectivity
* USB-host
* Wiegand input & output
* Network interface by TCP/IP or RS485

Full access control features
* Access control interface for 3rd party electric lock, door sensor, exit button, alarm
* Webserver
* Anti-passback setting

Easy operation and management
* Work without computer
* Graphic LCD, buzzer, 3×5 keypads and doorbell
* Built-in keypad and RF card reader for multi-modal authentication (fingerprint/PIN/card)


Specifications:

CPU: 400MHz
Memory: 128MB flash + 32MB RAM
Algorithm Version: ZK Finger 10.0
Communication: TCP/IP, RS485, USB-host
Fingerprint Capacity: 3000
Card Capacity: 3000
Log Capacity:100000
Authentication: Finger / PIN / Card
Wiegand Signal: Inputs & Outputs
Ingress Protection Rate: IP65
LCD: 128 x 64 OLED with white color
Keypad:3 x 5 keypads & doorbell
Sound: Buzzer
Operating Voltage: 12V
Operating Temperature:- 20 ~50 C
Size:62.5mm × 185mm × 41.5mm (W x H x D)


Image:


D5D6D8




EM Lock:
Features:
Use magnetic power to lock the door, 280kgs (600lbs) holding force.
Built-in reverse current protection device (MOV).
Alluminum shell adopts high strength material, with hard anodised processing.
Corrosion resistant.
Good quality and durable to use.
Can be opened by push button, remote controller, etc.
Fit for wooden door, metal door, glass door, fireproof door, etc.

Specifications:
Holding force: 280kgs
Voltage: DC 12V
Current: 380-450mA
Working temperature: -10 to 55 Celsius degree (14 to 131 Fahrenheit degree)
Humidity: 0 to 95%
Working mode: power-on to lock
Lock size: 25 * 4.6 * 2.5cm
Plate size: 18 * 3.8 * 1.6cm
Package weight: 2KG

072324



Power supply:
Features:
100% Brand New.
Size: Approx. 212 x 172 x 70mm(L x W x H)
Weight: 1.1kg
Input voltage: 110~240v
Input Frequency: 50~60Hz
Output voltage: DC 12V
Output Current: 5A
Output voltage trim range: ±10%~ ±15%
Insulation voltage: Junior/sub-polar inter-1500v ac, primary/shell between 1500V AC, subpolar/shell between 500V AC
Hold time: full load typically 20ms
Operating temperature: -20~ ±35 degree
Overload protection: All output in a short circuit, overload are protected; Power output of 0-15 seconds delay locks
1625




Exit Button:
Product Description:

Door release buttons are the most common and the frequently used in the access control systems. They are often used in public authorities, banks, large, small and medium-sized enterprises, department stores and residences.

Specification:
Dimensions86Lx86Wx25H(mm)
Input DC12V
Contact Rating[email protected] Max
Output Contact NO\\COM
Mechanical Life500000 tests
Suitable for Door Hollow Door
Operating temp -20~+55 degree(14-131F)
Suitable Humidity0-95% (relative humidity)
ColorSilver
Weight 0.2kg
Standard Packing 60pcs/carton



3132



Wired door bell:
Specifications:
  • Wired door bell 12V for security access control
  • 100% Brand New and high quality
  • Features a bell sound, small size and wall-mount hole, very easy to install
  • Switch is not included
  • Working Voltage: DC 12V
  • Dimension:

    - Approx. 87 (W) x 62 (H) x 23 (D) mm
    - Approx. 3-1/2" (W) x 2-1/2" (H) x 1" (D) inch

  • Material: Plastic
  • Color: White



Wiring Instructions:

  • Red           +12V
  • Black         GND
  • Yellow       SWITCH
  • Green       SWITCH
18

Remote control:
Product instroction

The company receives the remote control board, suitable for security alarm, remote control electric doors and Windows, signal control, industrial control, the electric control circuit of lifting equipment, etc. All remote control switch module, relay contact output independently, is very suitable for direct control of various load; Products adopt wireless fixed code technology, omnidirectional, noninterference switch. 12 v remote control switch, the power supply proposal with more than 500 ma dc regulated power supply.



Specification:

1. Transmitter

Channel: 1 CH
Remote Control Distance: 0-50m
(Please notice that is the ideal distance without any block and signal interfere, it would rise and  fall about 10%-50% with the block and signal interference.)
Encode: Fixed code, soldering 2260 2262
Frequency: 315MHz or 433MHz (Default 315MHz)

2. Receiver
Channel: 1CH
Power Supply (Operating Voltage): DC 12V
Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC
Sensitivity: -105 dBm
Operating Temperature: -40 C ~ +80 C
Size:  70mm*50mm*18mm
Output way: Inter-lock
17
